Clean space access equipment

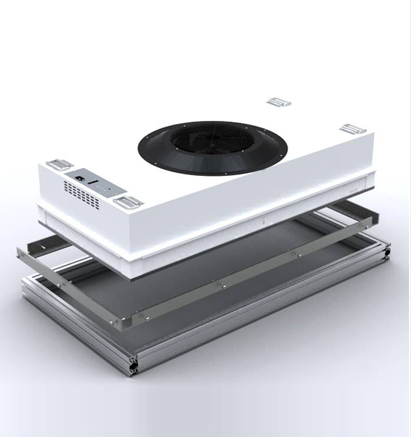

FFU Fan Filter Unit
▶ Fan Filter Unit with an Optimal Structure
- Equipment
- FFU with high performance, ultra-slim design, and proven performance
- Function
- Lighter in design (5kg lighter)
- Air velocity of the filter made more even
- High-efficiency, low-noise fan and moter (with a noise level of 55db(A) or lower)
- Various controllers can be applied (On/Off, 3 Step, PWM etc.)

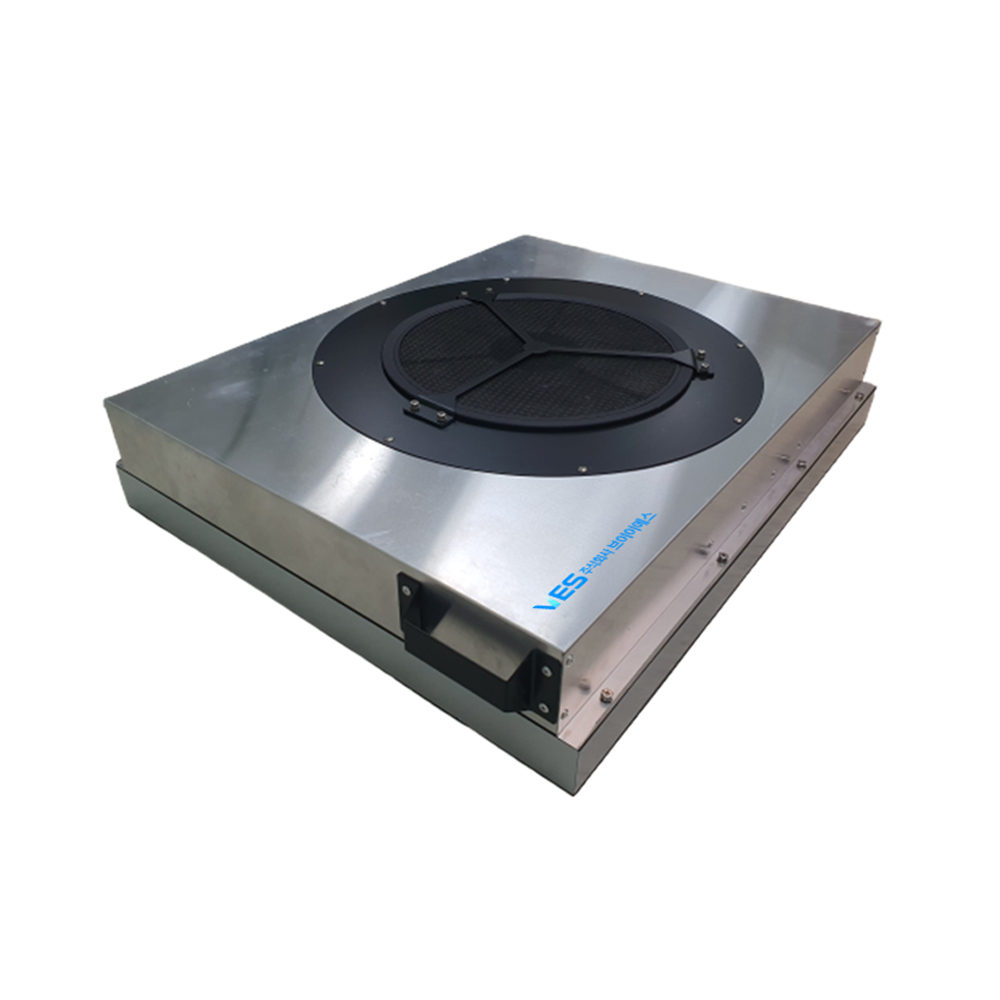

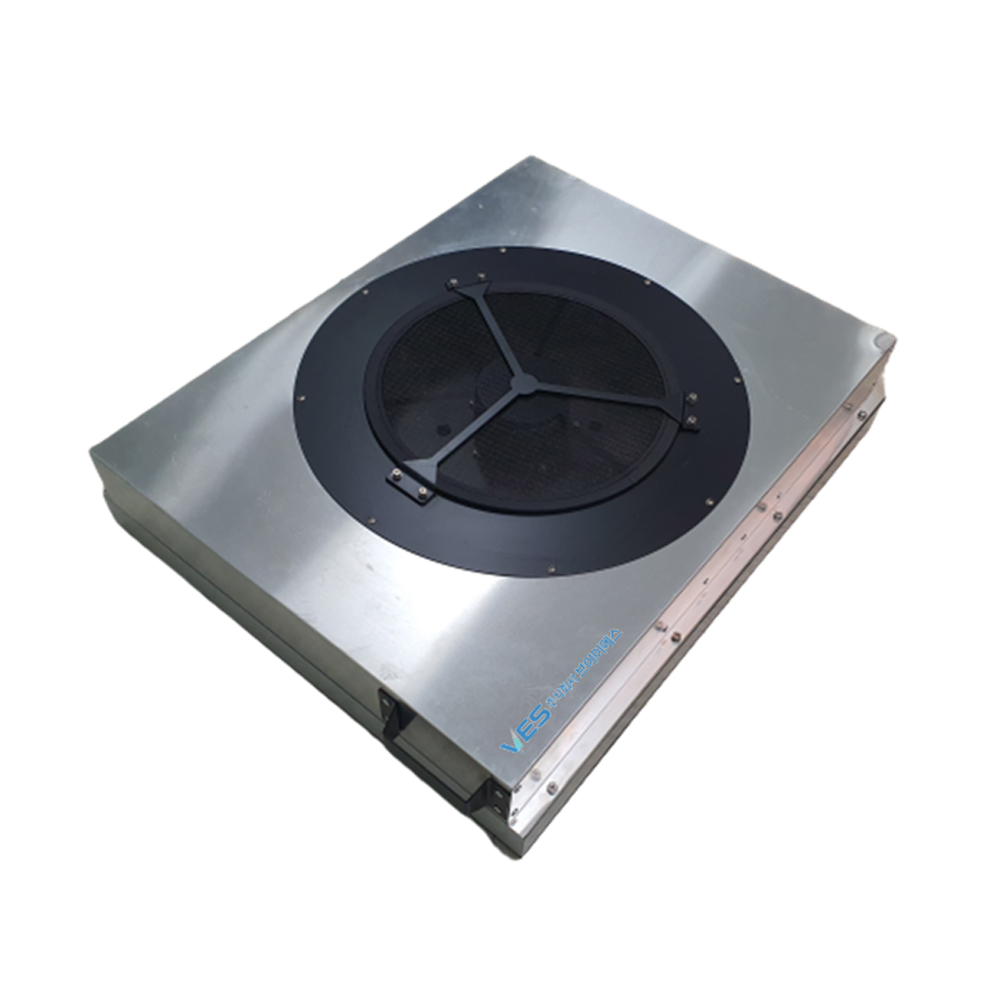

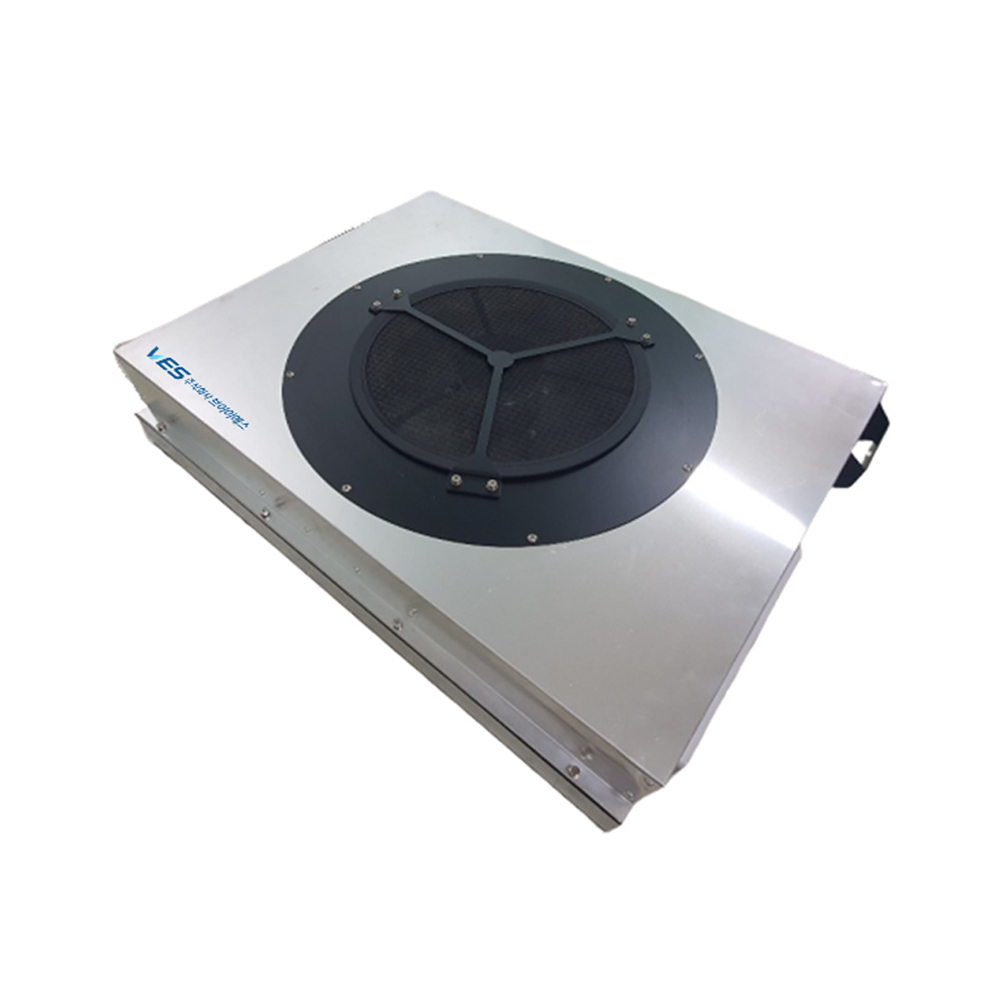

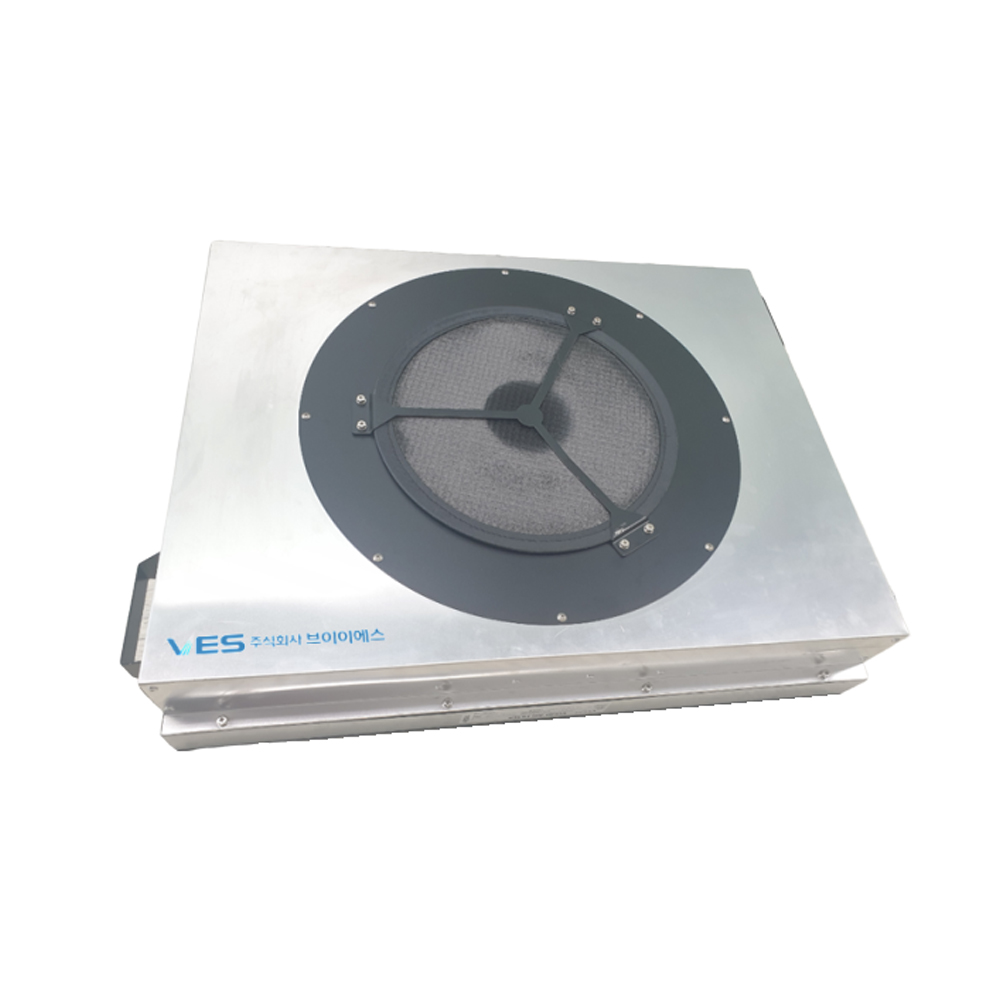

- VUUM Fan Filter Unit
- ‘Fan Filter Unit with an Optimal Structure’’
- This unit has been specifically designed to fit into “Mini”environments, such as the super Clean Room at semiconductor or LCD production plants, which require independent spaces with highly purified air.
- Lighter in design (5kg lighter)
- Air velocity of the filter made more even
- High-efficiency, low-noise fan and moter (with a noise level of 55db(A) or lower)
- Various controllers can be applied (On/Off, 3 Step, PWM etc.)
Main Features
-

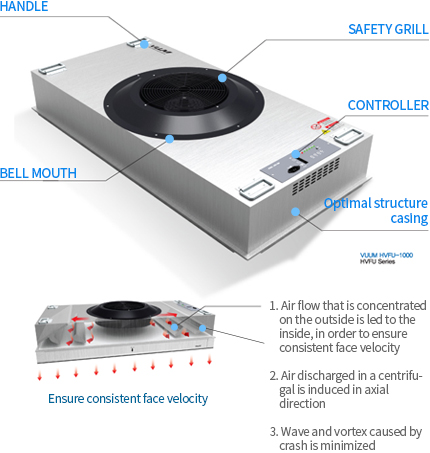

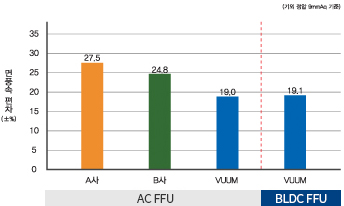

High efficiency AC/BLDC FFU development with guaranteed performance and consistent face velocity
-
- ※ 28-point measurement with 3D anemometer at the bottom 300mm of the filter/dt>
- (for 9mmAq. external static pressure and 0.45m/s face velocity)
-

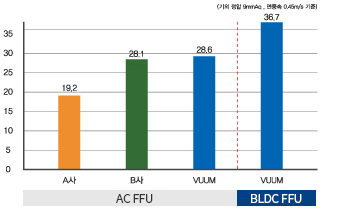

- ※ Based on equipment efficiency
- (for 9mmAq. external static pressure and 0.45m/s face velocity)
-
- Product Specification
AC Motor Types
| Model | HVFU-1000 | |
|---|---|---|
| Size(mm) | Filter 제외 | 1178×578×195 |
| Filter Size | 1172×572×75 | |
| Power | 1PH AC 220V 60Hz | |
| 190W | ||
| Noise | 57dB(A) | |
| Weight(Exclude Filter) | 17kg | |
| Filter Specification | ULPA Filter, 0.12㎛ 99.99995%(DOP), 9mmAq | |
| Option | ON/OFF, 3 Step PWM control / PRE―FILTER MODULE | |
※Noise: for 1 unit installed in background noise 28dB(A) anechoic room
BLDC Motor Types
| MODEL | HVFU-3000 | |
|---|---|---|
| Air Velocity | 0.45m/s (at 18.5mmAq) | |
| Size(mm) | Filter 제외 | 1178×578×165 |
| Filter Size | 1172×572×75 | |
| Power | 1PH AC 220V 60Hz | |
| 145W | ||
| Noise | 56dB(A) | |
| Weight(Exclude Filter) | 14kg | |
| Filter Specification | ULPA Filter, 0.12㎛ 99.99995%(DOP), 9mmAq | |
| Control | LINEAR control CONTIROLLER | |
※Noise: for 1 unit installed in background noise 28dB(A) anechoic room
- Supply history
| Company | By country | Participation Type |
|---|---|---|
| Samsung | Korea | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Vietnam | FFU, Filters, Clean Booth, Air Shower, Pass Box |
| Samsung | Malaysia | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Hungary | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Egypt | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Mexico | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Slovakia | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Iran | FFU, Filters, Clean Booth, Air Shower |
| Samsung | Ukraine | FFU, Filters, Clean Booth |
| Samsung | Australia | FFU, Filters, Clean Booth |
| Samsung | India | FFU, Filters, Clean Booth |
| Samsung | Nigeria | FFU, Filters, Clean Booth |
| Samsung | Kazakhstan | FFU, Filters, Clean Booth |
| Samsung | Brazil | FFU, Filters, Clean Booth |
| Samsung | Bangladesh | FFU, Filters, Clean Booth |
| Samsung SDI | Korea | FFU, EFU, Filters, Clean Booth, Air Shower |
| Samsung SDI | Malaysia | FFU, Filters |
| Samsung SDI | China | FFU, Filters |
| Imarket | Korea | FFU, Filters |
| Imarket | Malaysia | FFU, Filters |
| Imarket | Egypt | FFU, Filters |
| Imarket | Mexico | FFU, Filters |
| Imarket | Ukraine | FFU, Filters |
| Imarket | Brazil | FFU, Filters |
| Imarket | Hungary | FFU, Filters |
| IM | Korea | FFU, Filters, Clean Locker, Clean Booth, Air Shower, Pass Box |
| IM | Vietnam | FFU, Filters, Relief Damper, Air Shower, Pass Box |
| IM | Philippines | FFU, BFU, HFU, Relief Damper, Filters, Clean Locker, Hand Shower, Clean Booth, Air Shower, Pass Box |
| Nanos | Korea | FFU, BFU, HFU, Relief Damper, Filters, Clean Locker, Shoe Shelf, Clean Booth, Air Shower, Pass Box |
| Soulbrain | Korea | FFU, BFU, HFU, Relief Damper, Filters, Air Shower, Pass Box |
| Innox | Korea | FFU, Filters, Relief Damper, Air Shower, Pass Box |
| GE Tech | Vietnam | FFU, Filters, Relief Damper, Air Shower, Pass Box |
| Haesung Vina | Vietnam | FFU, Filters, Clean Locker, Clean bench |
| Haesung Optis | Vietnam | FFU, Filters, Clean Booth |
| Poongsan System | Korea | FFU, EFU, Filters, Clean Booth, Air Shower, Pass Box |
| Dongwoo Fine-chem | Korea | FFU, Filters, Clean Booth |
| Gooil Engineering | Korea | FFU, Filters |
| IZU NOBLELINK | Philippines | FFU, Relief Damper, Filters, Clean Booth, Air Shower, Pass Box |
| Moby Engineering | Korea | FFU, BFU, HFU, Relief Damper, Filters, Air Shower, Pass Box |
| Deahan Cleantech | Korea | FFU, BFU, HFU, Filters |
| Hogun FA | Korea | FFU, Filters |
| Hyvision | Korea | FFU, Filters |
| Hana Technology | Korea | FFU, Filters |
| Jikosys | Korea | FFU, Filters |
| Mowon | Korea | FFU, Filters |
| Woori Control Technology | Korea | FFU, Filters |
| Koem | Korea | FFU, Filters |
| MAK | Korea | FFU, FIlters |
| Bookukhitec | Korea | FFU, FIlters |
| Onetech Korea | Korea | FFU, FIlters |
| DSP | Korea | FFU, FIlters |
| Philoptics | Korea | FFU, FIlters |
| Leed | Korea | FFU, FIlters |
| GSI | Korea | FFU, FIlters |
| Mirae Automation Machine | Korea | FFU, FIlters |
| Dongil Engineering | Korea | FFU, FIlters |
| Interzero System | Korea | FFU, Filters |
