Clean space access equipment

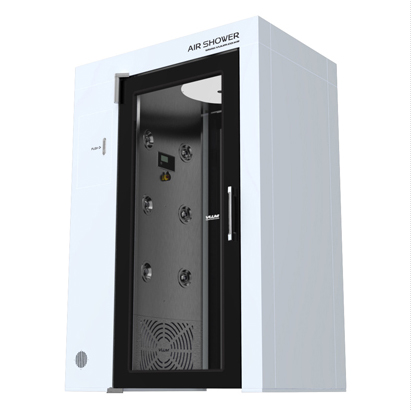

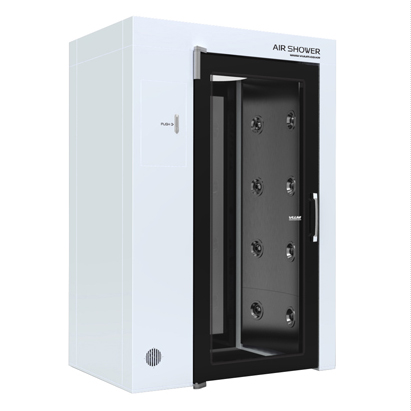

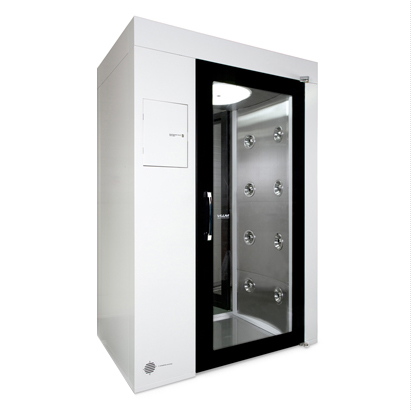

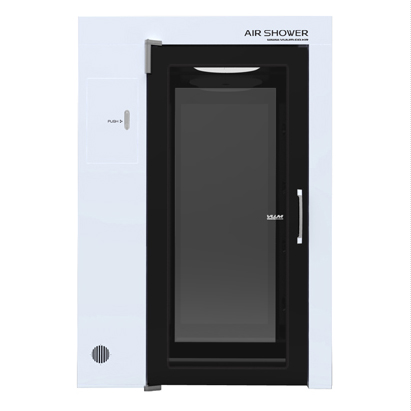

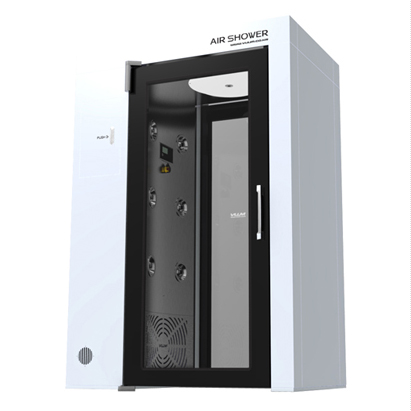

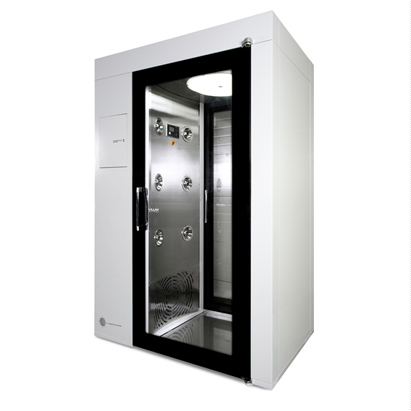

VUUM Air Shower Industrial Air Shower
▶ Industrial (ICR, BCR, etc.) air shower
- Equipment
- Powerful Tornado Air Showers from a Simple Design
- Function
- Showering effect maximized with multiple nozzles
- Inner room made wider by adopting an open door and an internal curve design
- Damper system that catches the dust that can be carried in after shower
- A modular structure facilitating assembly and maintenance
- VUUM Air Shower
- ‘Powerful Tornado Air Showers from a Simple Design'
- Generating powerful currents of wind and utilizing its ability to collect dust, VUUM Air Shower quickly removes dust and dirt and maintains the cleanness of indoor air, preventing indoor air pollution from dust and dirt that may come from people and goods.
- Showering effect maximized with multiple nozzles
- Inner room made wider by adopting an open door and an internal curve design
- Damper system that catches the dust that can be carried in after shower
- A modular structure facilitating assembly and maintenance

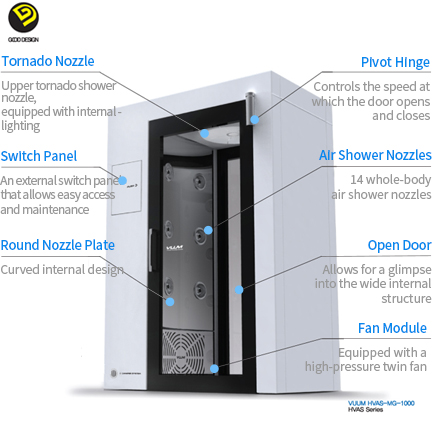

Main Features
-
The upper tornado nozzle and the 14 air shower nozzles on the side provide the air showers maximum power and speed
-
The internal round plate maximizes the tornado showering effec
-
Discharges the dust that can be carried in after showering using the positive pressure from inside the room
- Product Specification
Main Features
| Model | HVAS-MG-1000 | ||||
|---|---|---|---|---|---|
| Size(mm) | IN | 850×910×2000 | |||
| OUT | 1500×1000×2200 | ||||
| Exterior | SPCC 1.2T, Oven backed melamine coated finish | ||||
| Interior | STS 304 1.2T Polishing finish | ||||
| Door | AL 1.5T Oven backed melamine coated finish, Safety Glass 5T | ||||
| Interlock | Electronic Magnetic Lock 180Lbs, 12VDC, 1A | ||||
| Lighting | Applying a circle lamp (40W) | ||||
| Filtering Efficiency | HEPA filter - 0.3㎛ DOP 99.97% or higher ; Pre-filter - A filtering efficiency of 70-85% of the equipment weight | ||||
| Power | HVAS-MG-1000 | ||||
| 1.2kW | |||||
| Door Direction | A | B | C | D | |
 |
 |
 |
 |
||
| Air Velocity | 25% or higher | ||||
| Air Volume | 14CMM | ||||
| Number of Nozzles | 14개 | ||||
| Showering Time | 1~99 SEC (Adjustable) | ||||
| Model | HVAS-ML-1000 | ||||
|---|---|---|---|---|---|
| Size(mm) | IN | 850×910×2000 | |||
| OUT | 1500×1000×2200 | ||||
| Power | 3 PH AC 220V/380V 60Hz 4-cord | ||||
| 1.2kW | |||||
| Door Direction | A | B | C | D | |
 |
 |
 |
 |
||
| Air Velocity | 25%이상 | ||||
| Air Volume | 14CMM | ||||
| Number of Nozzles | 14개 | ||||
| Showering Time | 1~99 SEC (Adjustable) | ||||
※ The rest of the specification is the same as those for HVAS-MG-1000
Automatic Door Types
| Model | HVAS-MG-1000 | ||||
|---|---|---|---|---|---|
| Size(mm) | IN | 850×830×2000 | |||
| OUT | 1940×010×2200 | ||||
| Interior | Automatic Door interlock control | ||||
| Power | 3 PH AC 220V/380V 60Hz 4-cord | ||||
| 1.4kW | |||||
| Door Direction | A | B | |||
 |
 |
||||
※ The rest of the specification is the same as those for HVAS-MG-1000/2000/3000
